OM15020 JN5169 NXP USB Dongle

Detailed pictures

The NXP OM15020 is a ZigBee USB Dongle based on the NXP JN5169:

Overview of the NXP OM15020 USB DONGLE, JN5169 module

Antenna

Here is the PCB antenna:

Antenna of the NXP OM15020 USB DONGLE, JN5169 module Antenna of the NXP OM15020 USB DONGLE, JN5169 module

JN5169

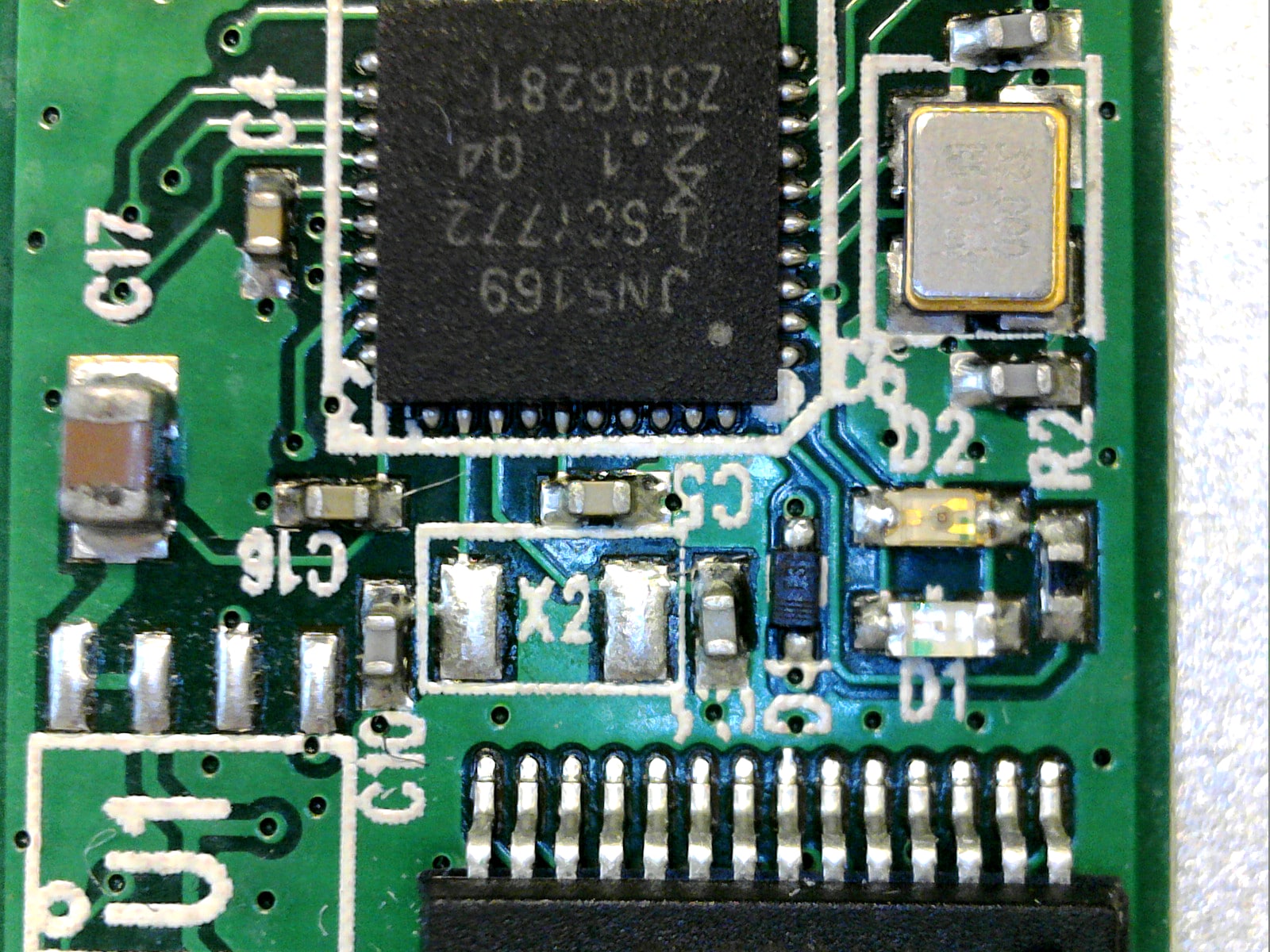

Main processor JN5169, ZigBee and IEEE802.15.4 wireless 32-bit RISC microcontroller:

JN5169 of the NXP OM15020 USB DONGLE, JN5169 module JN5169 of the NXP OM15020 USB DONGLE, JN5169 module JN5169 of the NXP OM15020 USB DONGLE, JN5169 module

FTDI232RL

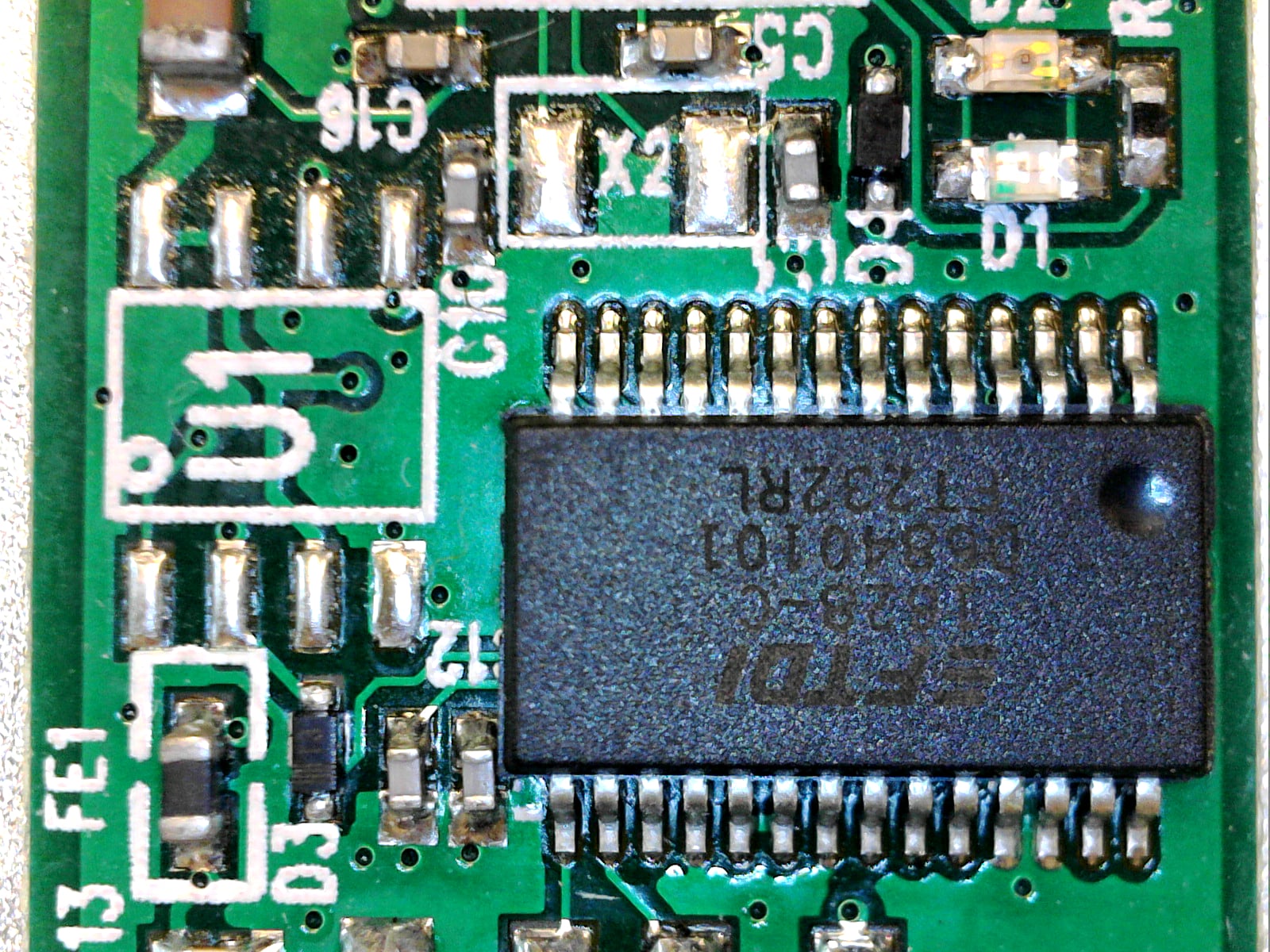

USB to TTL Serial Converter FTDI232RL:

USB to TTL Serial Converter FTDI232RL on the NXP OM15020 USB DONGLE, JN5169 module USB to TTL Serial Converter FTDI232RL on the NXP OM15020 USB DONGLE, JN5169 module USB to TTL Serial Converter FTDI232RL on the NXP OM15020 USB DONGLE, JN5169 module
