Lesson 9.3. Multidimensional arrays

Syntax

In C, it is possible to create multidimensional arrays by specifying the size of each dimension in square brackets one after the other:

int tab[3][4];

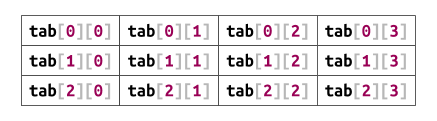

The line above declares a table of 3 rows by 4 columns, that is 12 cells in total.

Note: theoretically, the number of dimensions is not limited. In practice, however it depends on the compiler and the available memory.

Exercise

The following multidimensional table is provided:

  char Hi[7][11] = {  {32,32, 95,32 ,32,32,32 ,95,32 ,95,32 },
                      {32,124,32,124,32,32,124,32,40 ,95,41 },
                      {32,124,32,124,95,95,124,32,124,95,32 },
                      {32,124,32,32 ,95,95,32 ,32,124,32,124},
                      {32,124,32,124,32,32,124,32,124,32,124},
                      {32,124,95,124,32,32,124,95,124,95,124},
                      {32,32 ,32,32 ,32,32,32 ,32,32 ,32,32 } };

Display each value of the table as a character respecting the layout row / columns. Here is the display of the first two lines expected:

  _    _ _
 | |  | (_)


#include <stdio.h> int main(void) { // Variables to iterate rows and columns int l,c; // Declaration and initialization of a multidimensional array char Hi[7][11] = { {32,32, 95,32 ,32,32,32 ,95,32 ,95,32 }, {32,124,32,124,32,32,124,32,40 ,95,41 }, {32,124,32,124,95,95,124,32,124,95,32 }, {32,124,32,32 ,95,95,32 ,32,124,32,124}, {32,124,32,124,32,32,124,32,124,32,124}, {32,124,95,124,32,32,124,95,124,95,124}, {32,32 ,32,32 ,32,32,32 ,32,32 ,32,32 } }; // Display each value of the table // as a character // respecting the layout row / columns**. // COMPLETE HERE return 0; }

Quiz

Which syntaxes declare an array of 5 columns by 4 rows?

---

What is the size of the following array:

char carre[10][10];

---

What is the size of the following array:

unsigned char image[200][300][3];

---
