Configurable gear for solidwork

Introduction

In this post, you will find a configurable gear for Solidworks.

If your version of Solidworks includes the Toolbox Add-In, you should check this page which presents a better option for inserting gears in Solidworks.

Configuration

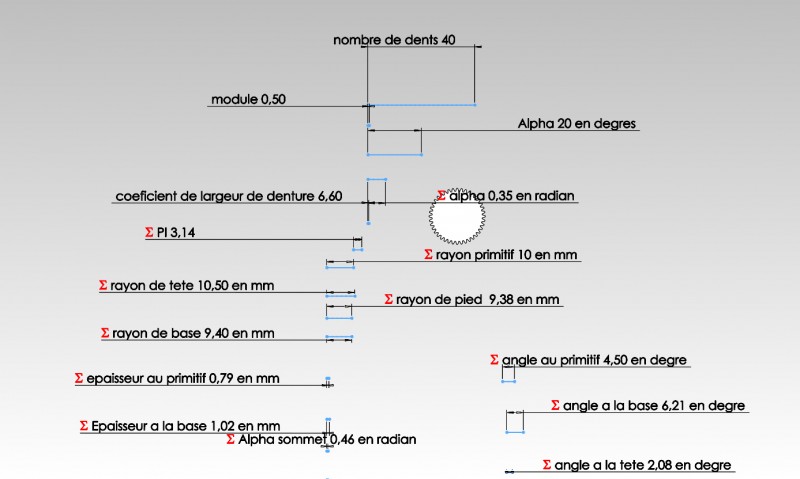

The following parameters can be tuned:

• module (module)
• number of teeth (nombre de dents)
• teeth width ratio (coefficient de largeur de dents)
• width (largeur)
• ...

Download

Solidworks part can be downloaded here:

tunable-gear.SLDPRT
